Quick-frame®: modular transport packaging made of heavy-duty corrugated board

Quick-frame® is a modular transport packaging set made of 7-ply corrugated board. It consists of a bottom-frame, stackable frames, corner pieces and an optional lid. By adding frames, you build packaging 280, 540 or 800 mm high on an inside footprint of 1160 × 760 mm. Quick-frame is designed for industrial companies that pack and ship goods on a pallet and need light, height-adjustable packaging that is quick to assemble by hand. Only two hands needed.

Want to know whether Quick-frame® suits your goods? Tell us what you pack, and we will reply with a recommendation and a quote.

Quick-frame packaging with lid next to a drawing of its heights: 280 mm bottom-frame, 540 mm with one frame, 800 mm with two frames; 1160 × 760 mm inside

280 / 540 / 800 mm

Packaging height

1160 × 760 mm

Inside footprint

9.96 kg

Weight at 800 mm

2,388 kg

BCT static, 1 frame with corner pieces

7-ply, 8 mm

ABE-wave corrugated board

The main advantages

Want to be totally wood-independent? Then use Quick-frame®

  • Modular – adjustable height

  • Low weight; with a height of 800mm (bottom-frame and two additional frames) it weighs only 9.96 kg

  • Suitable for transport by air, road, railway and water

  • Stackable

  • Recyclable

How Quick-frame® is assembled

Flat-packed Quick-frame corrugated cardboard modules stacked for space-saving storage

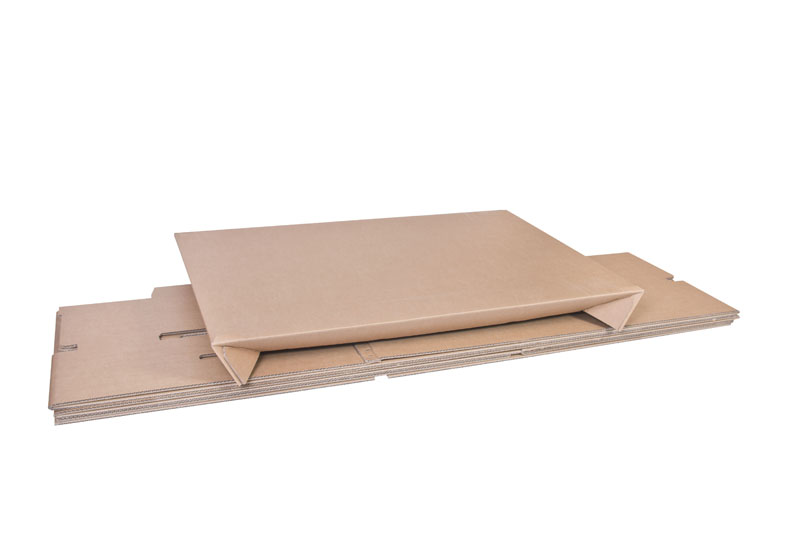

1 Packaging set before it is assembled

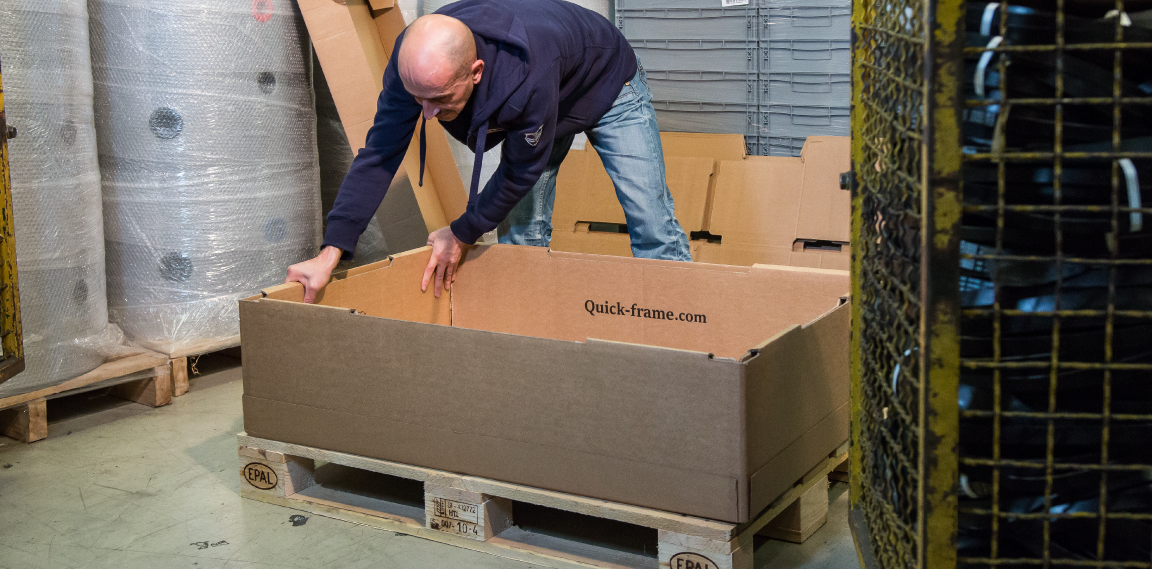

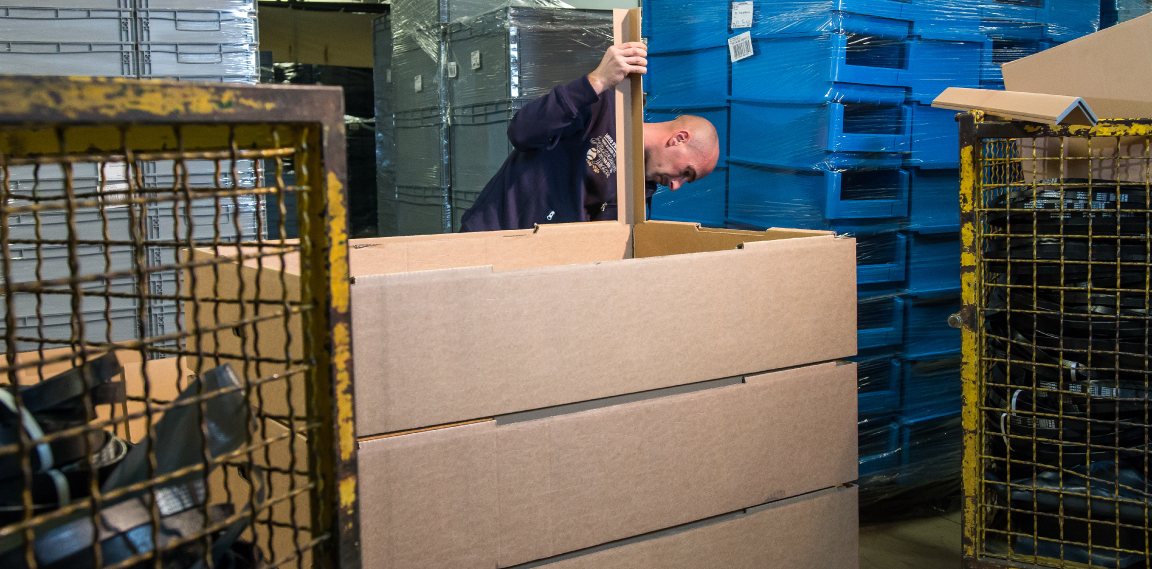

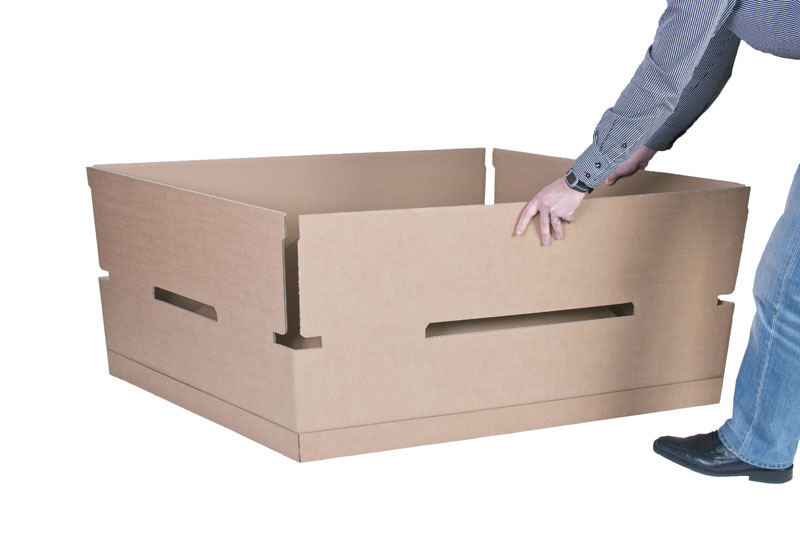

Man manual unfolding of a heavy-duty Quick-frame corrugated cardboard pallet collar

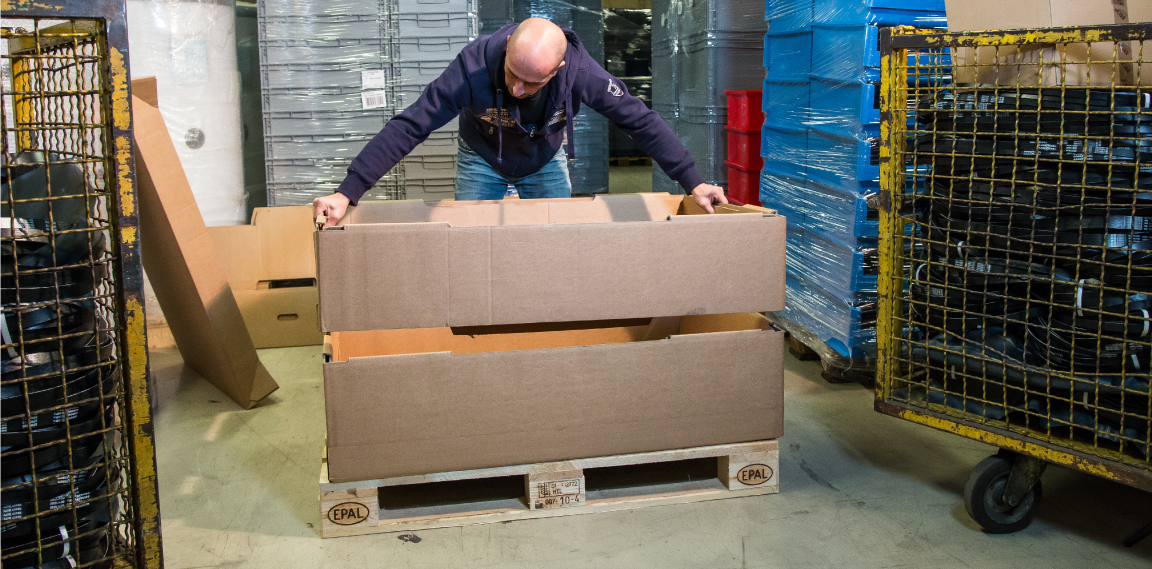

2 Assembling the bottom-frame

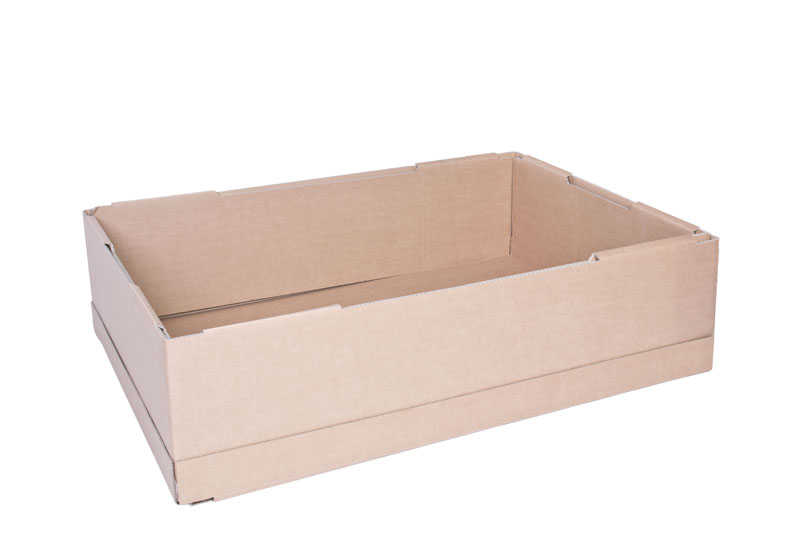

Single layer Quick-frame corrugated cardboard pallet collar module

3 The bottom fram is assembled

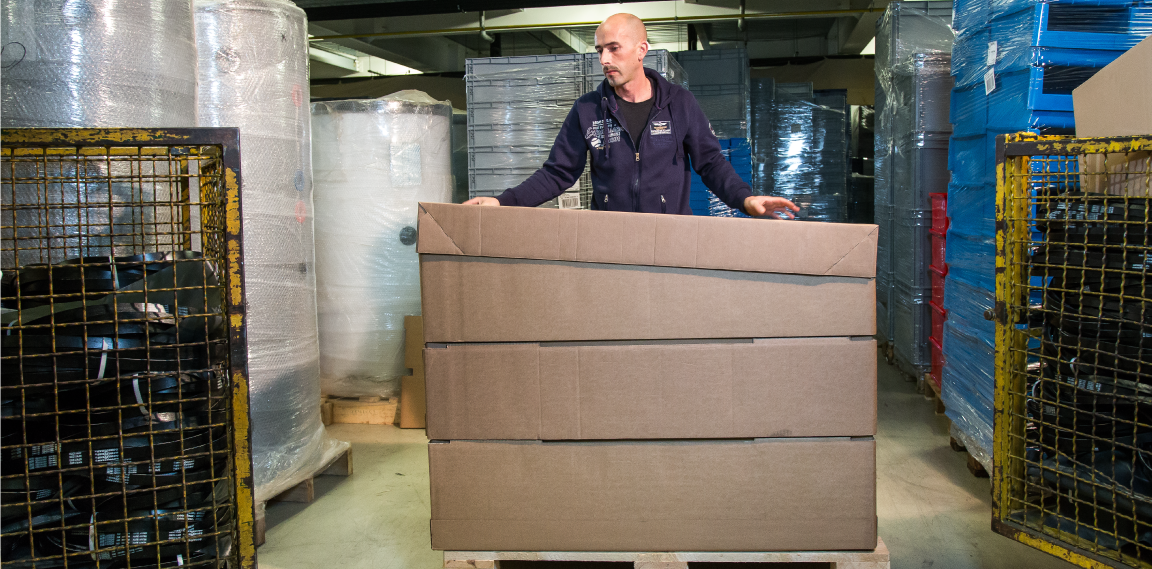

Modular Quick-frame corrugated cardboard packaging stacked vertically

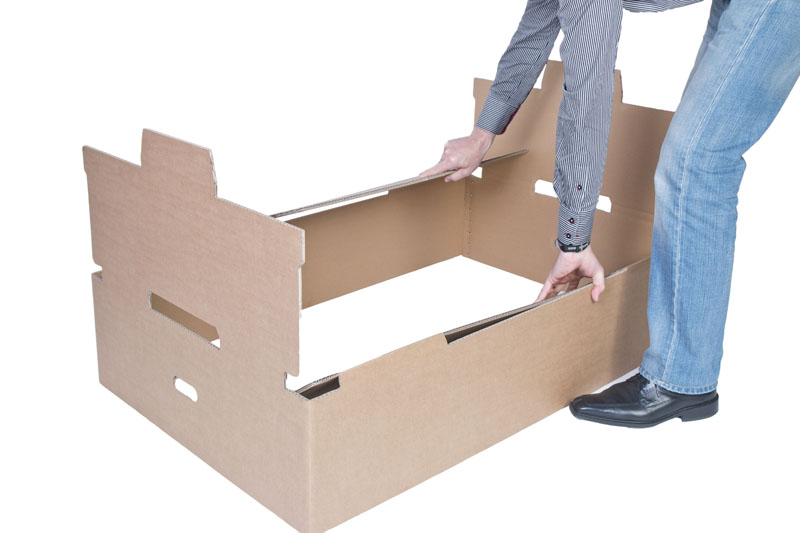

4 Assembling the frame

Enostavna ročna montaža in zlaganje modularnih okvirov embalaže Quick-frame

5 Adding a frame, the height is 540 mm

Modularna industrijska embalaža Quick-frame iz valovitega kartona zložena ena na drugo

6 Adding another frame, the height is 800 mm

Inserting a protective edge protector into a Quick-Frame heavy-duty corrugated pallet collar corner.

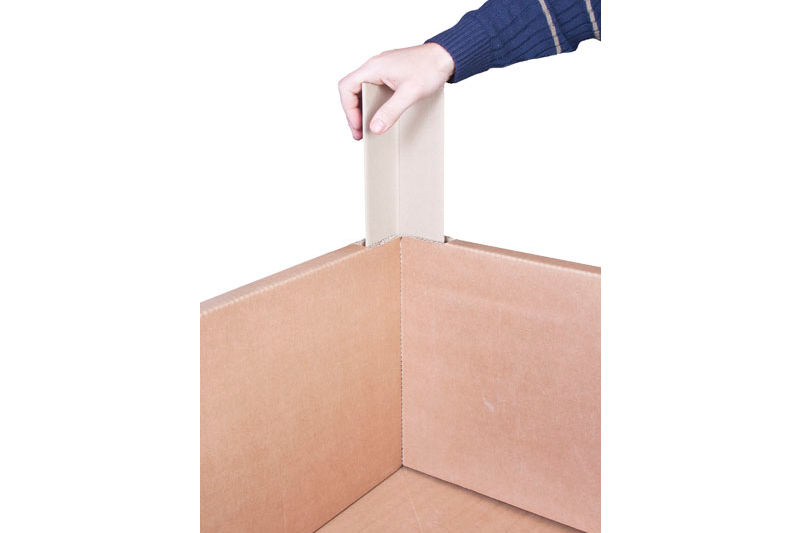

7 Adding corner pieces for reinforcement

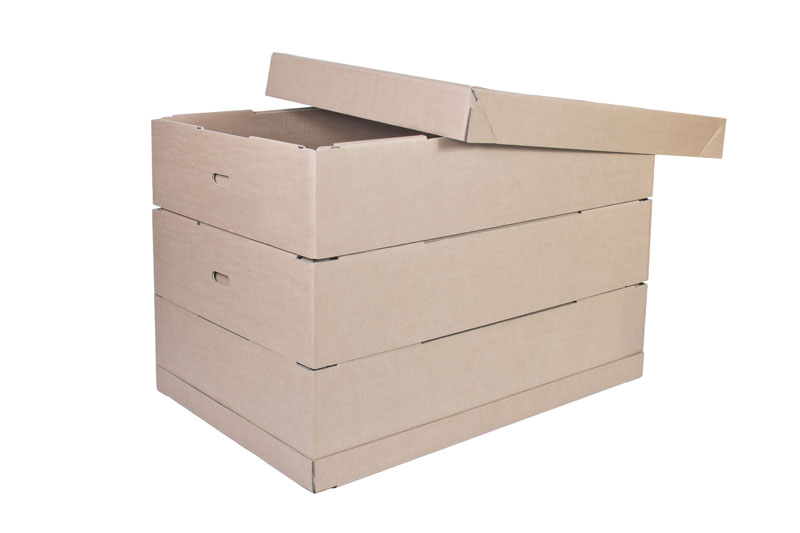

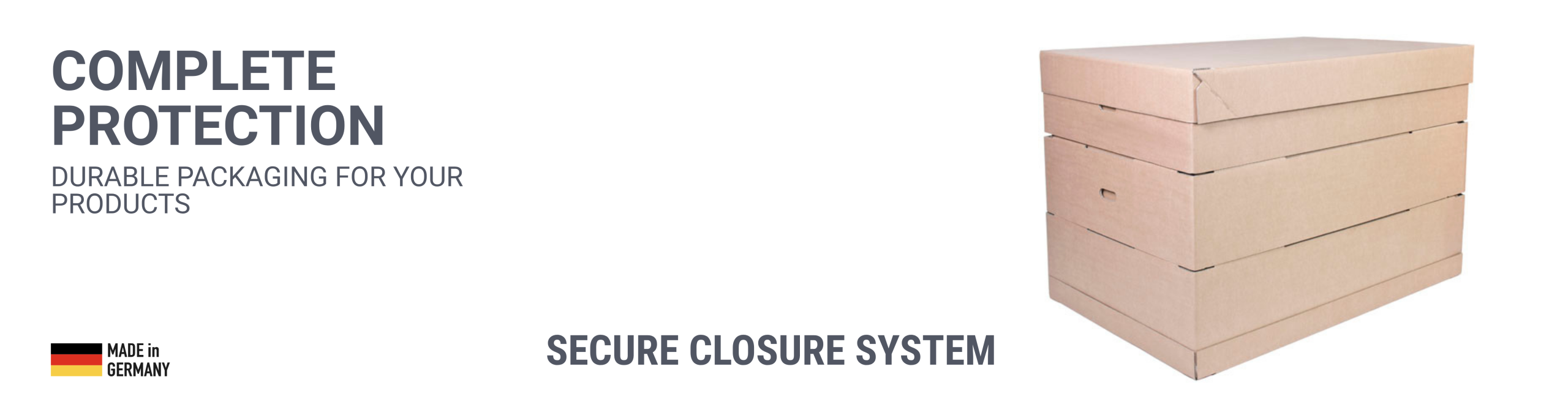

Assembled Quick-Frame heavy-duty corrugated pallet collars with a partially lifted matching lid as a wooden crate alternative.

8 Adding a lid, if needed

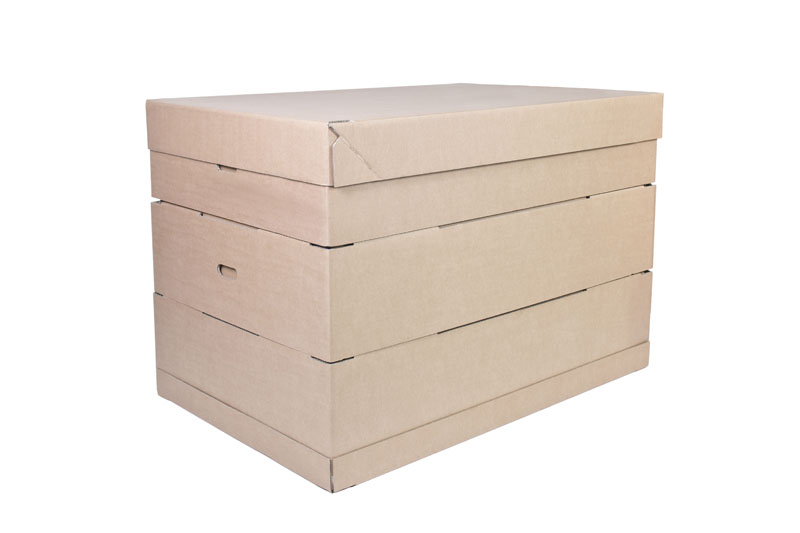

Assembled Quick-Frame heavy-duty corrugated pallet collar system with lid on a cardboard pallet as a wooden crate alternative.

9 Quick frame is assembled

Technical data

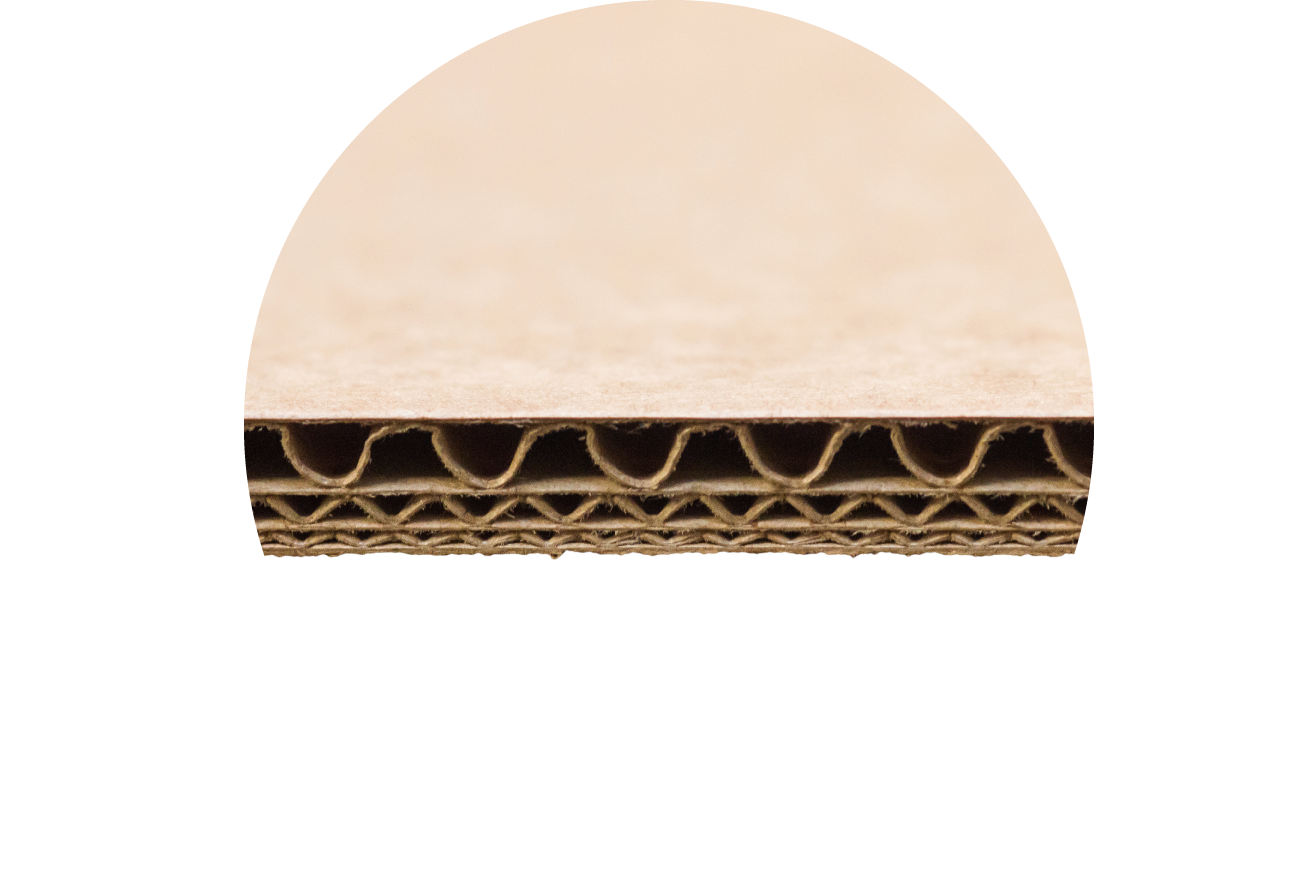

Material

7 ply corrugated cardboard ABE-wave

Thickness

8 mm

Inside dimensions and weight
Component Inside dimensions Weight
Bottom-frame 1160 × 760 × 280 mm 3,640 g
Frame 1160 × 760 × 260 mm 2,620 g
Lid 1190 × 790 × 130 mm 1,080 g

Supply quantities per pallet

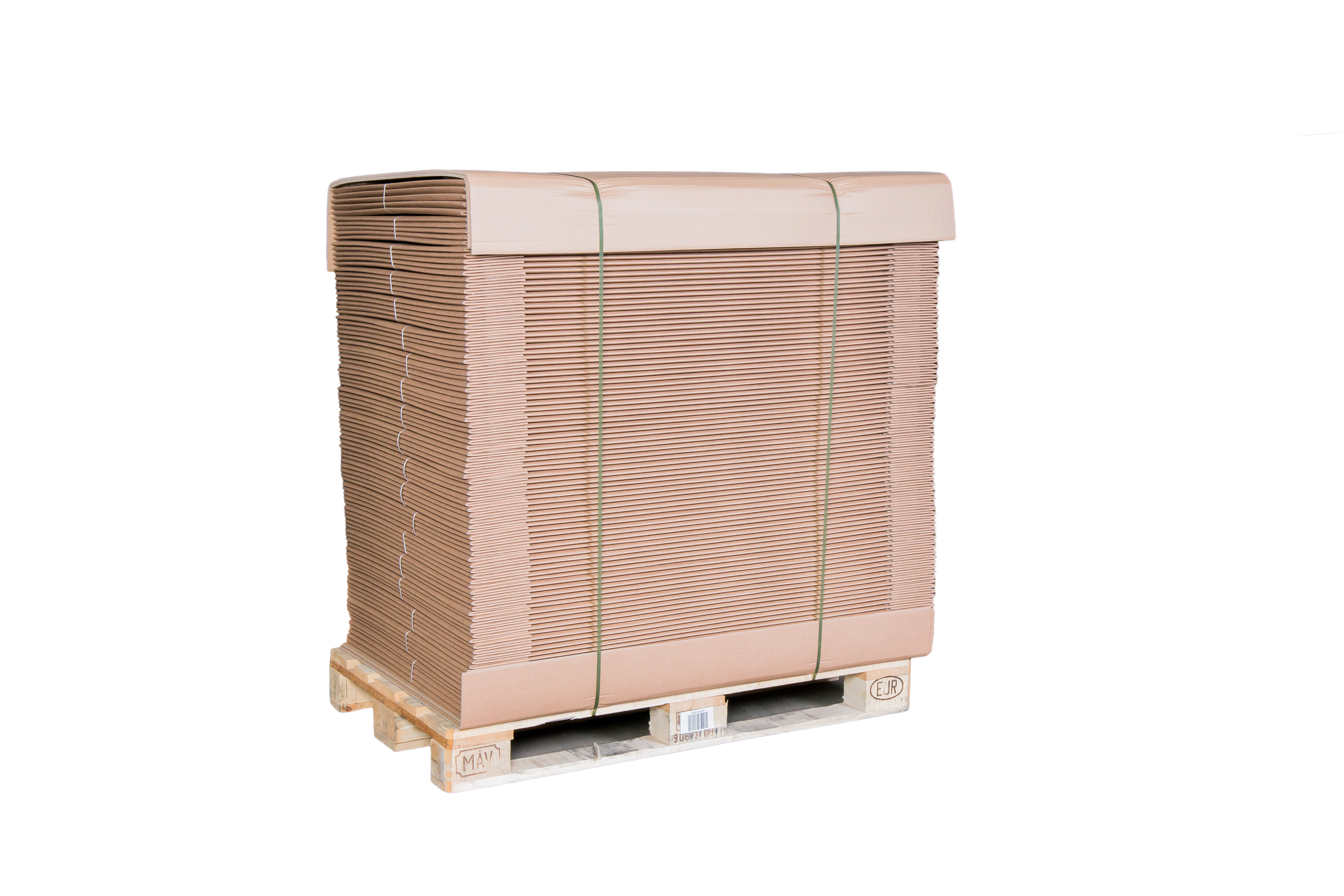

Bulk pallet of Quick-Frame heavy-duty corrugated lids and covers designed for pallet collars, securely strapped for shipping.

Lids

Dimensions: 1.2 × 0.8 × 1.3 m
Units/pallet: 90 pcs.

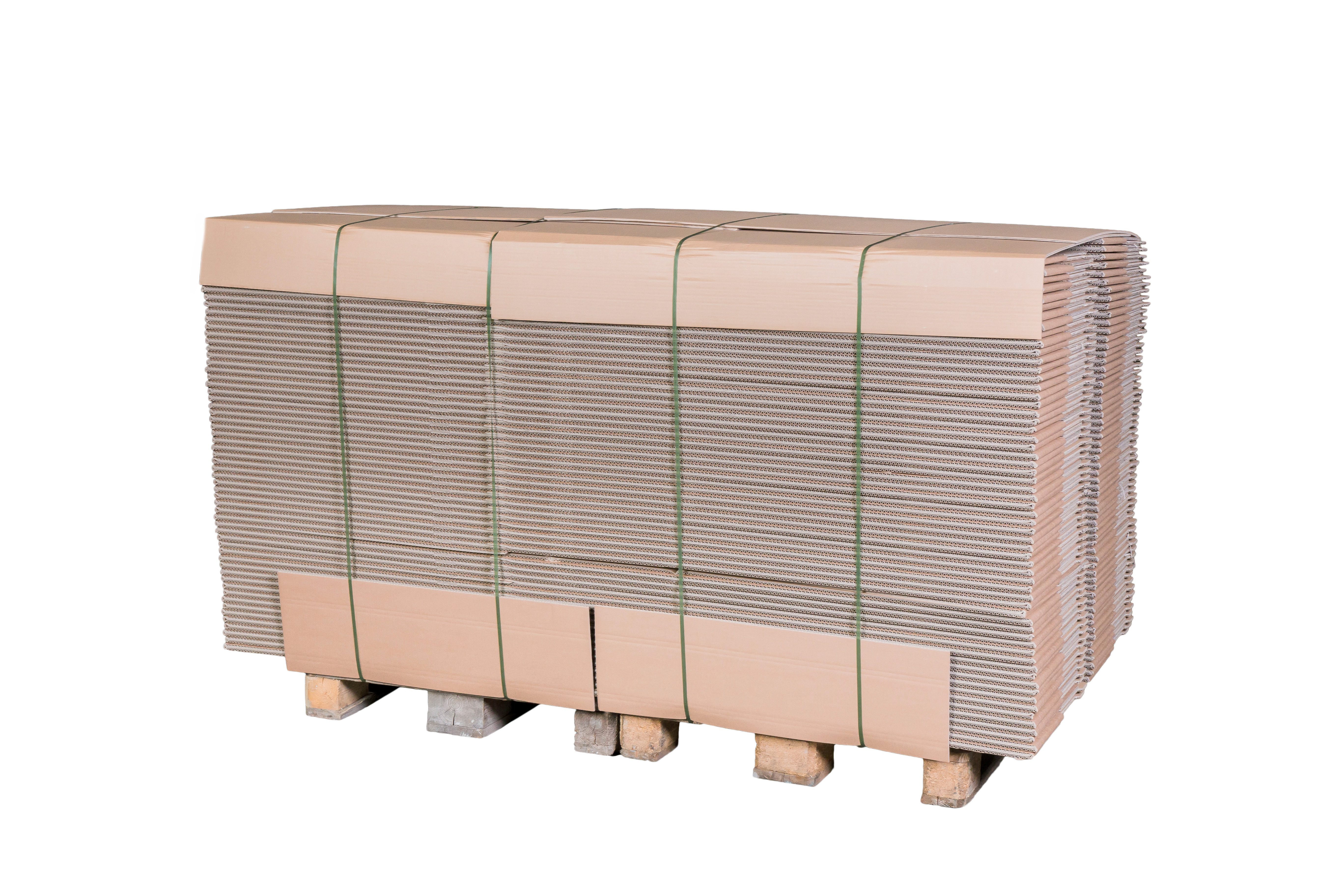

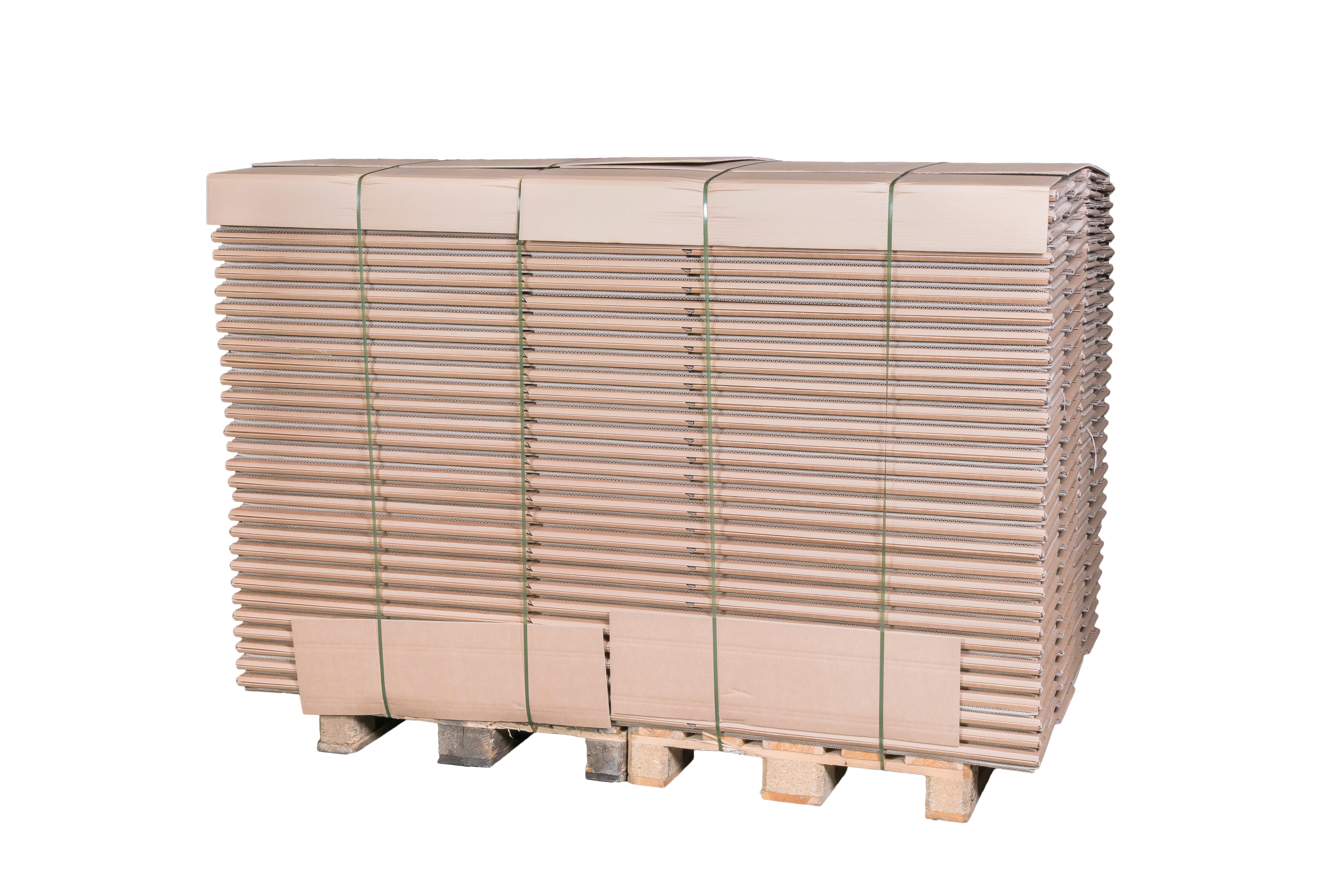

Bulk stacked heavy-duty corrugated packaging and pallet collars secured on a wooden pallet.

Frames

Dimensions: 2 × 1.35 × 1.7 m
Units/pallet: 180 pcs.

Bulk stacked heavy-duty corrugated packaging and pallet collars secured on a wooden pallet.

Bottom-frames

Dimensions: 2 × 1.35 × 1.45 m
Units/pallet: 90 pcs.

Corner pieces for reinforcement

Quick-frame corner pieces in three lengths: 60/60 × 6 × L 305 mm, 570 mm and 825 mm

Compression Tests (BCT)

Test number Specialty Number of frames BCT Static BCT Dynamic
1 With Corner Pieces 1 2,388 kg

 796 kg
2 Without Corner Pieces 1 675 kg

 225 kg
3 With Corner Pieces 2 2,280 kg

 760 kg
4 Without Corner Pieces 2 450 kg

 150 kg

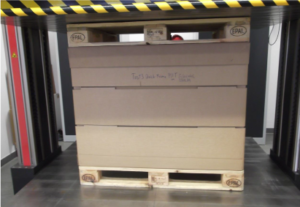

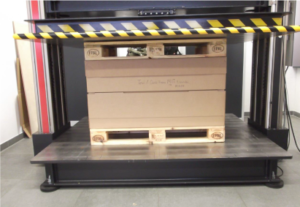

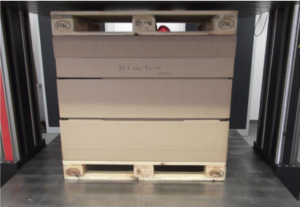

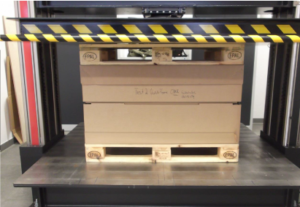

Compression strength test "Test 2" of heavy-duty corrugated packaging and pallet collars on EPAL pallets.

What do these values mean?

BCT (box compression test) shows how much load from above the packaging withstands. This value matters for stacking; it is not the permitted weight of the goods inside. The tests also show the role of the corner pieces: with corner pieces, the measured values are several times higher than without them.

Not sure whether Quick-frame carries your load? Tell us what you pack, the weight per load unit and the transport route, and we will recommend the right configuration.

Applications

Industrial packaging

Quick-frame® was originally developed for the automotive industry. It is also suitable for other industrial sectors, especially electrical equipment, machinery and metal processing.

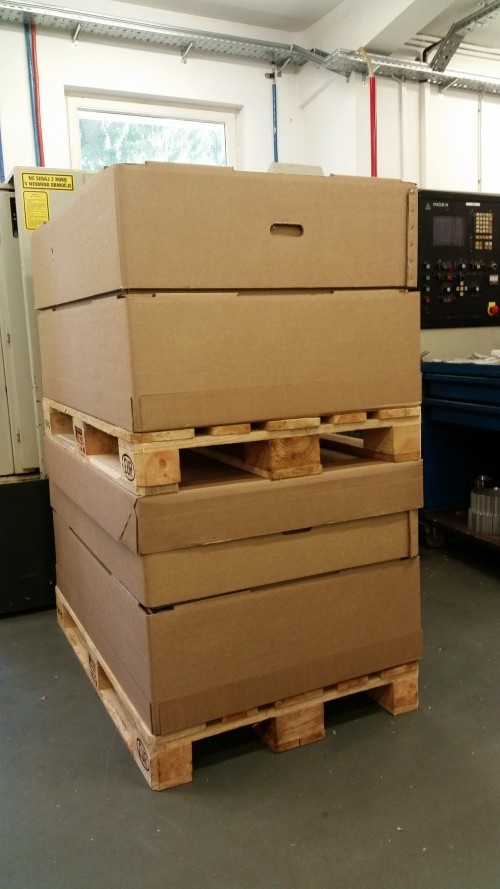

Stacked heavy-duty corrugated pallet collars and modular packaging units in an industrial setting.

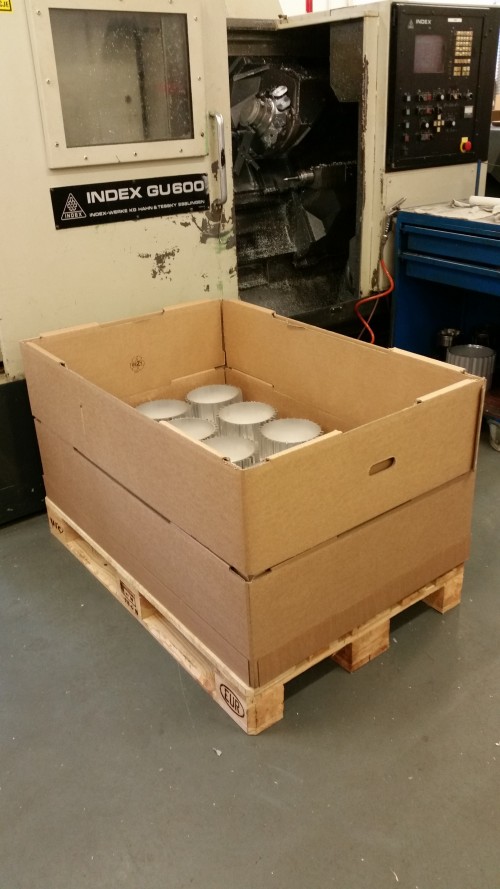

Heavy-duty corrugated packaging and pallet collar used for industrial parts next to a CNC machine.

Retail bulk display

Quick-frame® also works as a bulk display in retail. As products are sold, staff simply remove one frame, so the remaining goods are easy to reach again.

Stacked heavy-duty corrugated pallet collars and modular packaging on display.

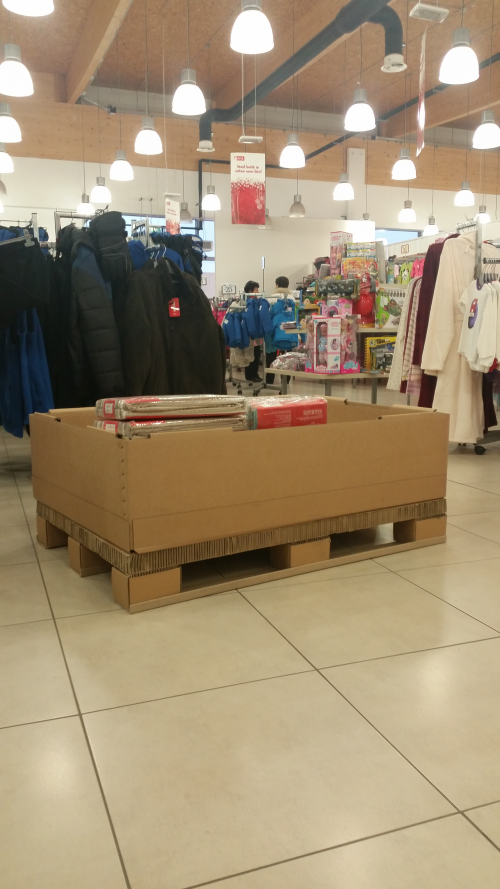

Modular corrugated packaging and heavy-duty pallet collar in a retail store.

Video

Frequently asked questions (FAQ)

Quick-frame® is a modular transport packaging set made of 7-ply corrugated board, consisting of a bottom-frame, stackable frames, corner pieces and an optional lid.

280 mm with the bottom-frame only, 540 mm with one additional frame and 800 mm with two additional frames.

The bottom-frame and frames measure 1160 × 760 mm inside. The lid measures 1190 × 790 × 130 mm.

Assemble the bottom-frame, add one or two frames to reach the height you need, insert the corner pieces for reinforcement and close the unit with a lid if needed. The steps are shown in the assembly section above.

They reinforce the corners and considerably increase compression resistance. Compare tests 1 and 2 in the compression test results.

BCT stands for box compression test: the load from above that the packaging withstands. It is relevant for stacking and does not describe the permitted weight of the goods inside.

Use the form below and tell us what you pack, the approximate weight per load unit, the quantity per year and the transport route. The more we know, the more precise our recommendation.

Request a quote

Tell us what you want to pack, and we will recommend a suitable Quick-frame configuration and send you a quote.

Helpful details:

  • Goods to be packed
  • Approximate weight per load unit
  • Quantity per year
  • Transport route and destination country
